XNA Shader Programming

Tutorial 2 – Diffuse light

Hi, and welcome to Tutorial 2 of my XNA Shader Programming tutorial. Today we are going to work on Tutorial 1 in order to make the lighting equation a bit more interesting, by implementing Diffuse lighting.

Diffuse light

Ambient light got the following equation:

I = Aintensity * Acolor

Diffuse lighting builds on this equation, adding a directional light to the equation:

I = Aintensity x Acolor + Dintensity x Dcolor x N.L (2.1)

From this equating, you can see that we still use the Ambient light, but need two more variables for describing the color and intensity of the Diffuse light, and two vectors N and L for describing the light direction L compared to the surface normal N.

We can think of Diffuse lighting as a value that indicates how much a surface reflects light. The light that is reflected will be stronger and more visible when the angle between the Normal N and the light direction L gets smaller and smaller.

If L is parallel with N, the light will be strongest reflected, and if L is parallel with the surface, the light will be reflected with the minimal amount.

To compute the angle between L and N, we can use the Dot-product, or the scalar product. This rule is used to find the angle between two given vectors and can be defines as the following:

N.L = |N| x |L| x cos(a) where |N| is the length of vector N, |L| is the length of vector L and cos(a) is the angle between the two vectors.

N.L = |N| x |L| x cos(a) where |N| is the length of vector N, |L| is the length of vector L and cos(a) is the angle between the two vectors.

Implementing the shader

We need three global variables:

float4x4 matWorldViewProj;

float4x4 matWorld;

float4 vLightDirection;

float4x4 matWorld;

float4 vLightDirection;

We still have the worldviewprojection matrix from tutorial one, but in addition, we have the matWorld matrix that is used to calculate a correct normal related to the world matrix, and a light direction vLightDirection that explains what direction that light have.

We also need to define the OUT structure for our vertex shader, in order to make the correct light equation in the pixel shader:

struct OUT

{

float4 Pos: POSITION;

float3 L: TEXCOORD0;

float3 N: TEXCOORD1;

};

struct OUT

{

float4 Pos: POSITION;

float3 L: TEXCOORD0;

float3 N: TEXCOORD1;

};

Here we have the position Pos, the light direction L and the Normal N stored in different registers. TEXCOORDn can be used for any values, and as we don’t yet use any texture coordinates, we can easily just use these registers as a storage for our two vectors.

Ok, its time for our vertex shader:

OUT VertexShader( float4 Pos: POSITION, float3 N: NORMAL )

{

OUT Out = (OUT) 0;

Out.Pos = mul(Pos, matWorldViewProj);

Out.L = normalize(vLightDirection);

Out.N = normalize(mul(N, matWorld));

return Out;

}

OUT VertexShader( float4 Pos: POSITION, float3 N: NORMAL )

{

OUT Out = (OUT) 0;

Out.Pos = mul(Pos, matWorldViewProj);

Out.L = normalize(vLightDirection);

Out.N = normalize(mul(N, matWorld));

return Out;

}

We take the position from the model file, as well as the normal, and pass it into the shader. Based on these and our global variables, we can transform the position Pos, normalize the light direction and transforming+normalizing the normal of the surface.

Then, in the pixel shader we take the values in TEXCOORD0 and put it in L, and the values in TEXCOORD1 and put it in N. These registers are filled by the vertex shader. Then we implement equation 2.1 in the pixel shader:

float4 PixelShader(float3 L: TEXCOORD0, float3 N: TEXCOORD1) : COLOR

{

float Ai = 0.8f;

float4 Ac = float4(0.075, 0.075, 0.2, 1.0);

float Di = 1.0f;

float4 Dc = float4(1.0, 1.0, 1.0, 1.0);

return Ai * Ac + Di * Dc * saturate(dot(L, N));

}

{

float Ai = 0.8f;

float4 Ac = float4(0.075, 0.075, 0.2, 1.0);

float Di = 1.0f;

float4 Dc = float4(1.0, 1.0, 1.0, 1.0);

return Ai * Ac + Di * Dc * saturate(dot(L, N));

}

The technique for this shader is the following:

technique DiffuseLight

{

pass P0

{

VertexShader = compile vs_1_1 VertexShader();

PixelShader = compile ps_1_1 PixelShader();

}

}

{

pass P0

{

VertexShader = compile vs_1_1 VertexShader();

PixelShader = compile ps_1_1 PixelShader();

}

}

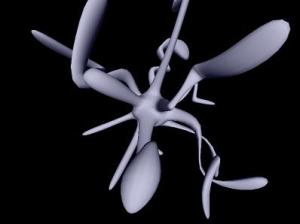

Ok, thats if for Diffuse light! Download the source and play around with it in order to understand it fully 🙂 I hope that you start to see the power of shaders now and how to use them in your own application!

NOTE:

You might have noticed that I have not used effect.commitChanges(); in this code. If you are rendering many objects using this shader, you should add this code in the pass.Begin() part so the changed will get affected in the current pass, and not in the next pass. This should be done if you set any shader paramteres inside the pass.

You might have noticed that I have not used effect.commitChanges(); in this code. If you are rendering many objects using this shader, you should add this code in the pass.Begin() part so the changed will get affected in the current pass, and not in the next pass. This should be done if you set any shader paramteres inside the pass.

Download: Executable + Source
